Saturno RF

lm output 2100lm

CCT

Power 500mA

Power 18W

IP IP40 - IP55

Class III

Weight 920 gr

Finishes

Description

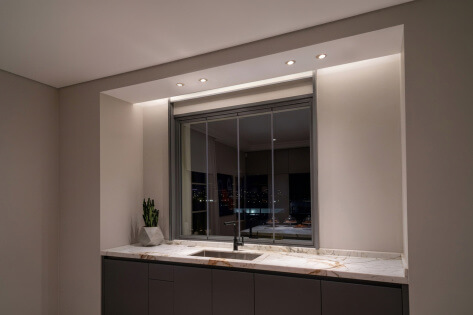

Saturno RF is an adjustable flush-mounted downlight, featuring a concealed adjustment mechanism and a profile that remains compact. Its dimensions, larger than those of Ariel, ensure the performance required for residential, catering and retail environments, even in the most spacious areas. Lenses, filters and decorative rings are interchangeable, allowing the design to evolve over time.

Download

Configure

UL Listed version

Interchangeable accessories

Lenses
18° Lens

24° Lens

33° Lens

52° Lens
Qty Quantity Add to project
Optical filters
Softening Lens

Elliptical Filter

Hex Louver

Prismatic Filter
Qty Quantity Add to project
Decorative rings
Shiny Chrome

Black

Satin Nickel

Gold Chrome

Satin Gold
Qty Quantity Add to project

Accessories

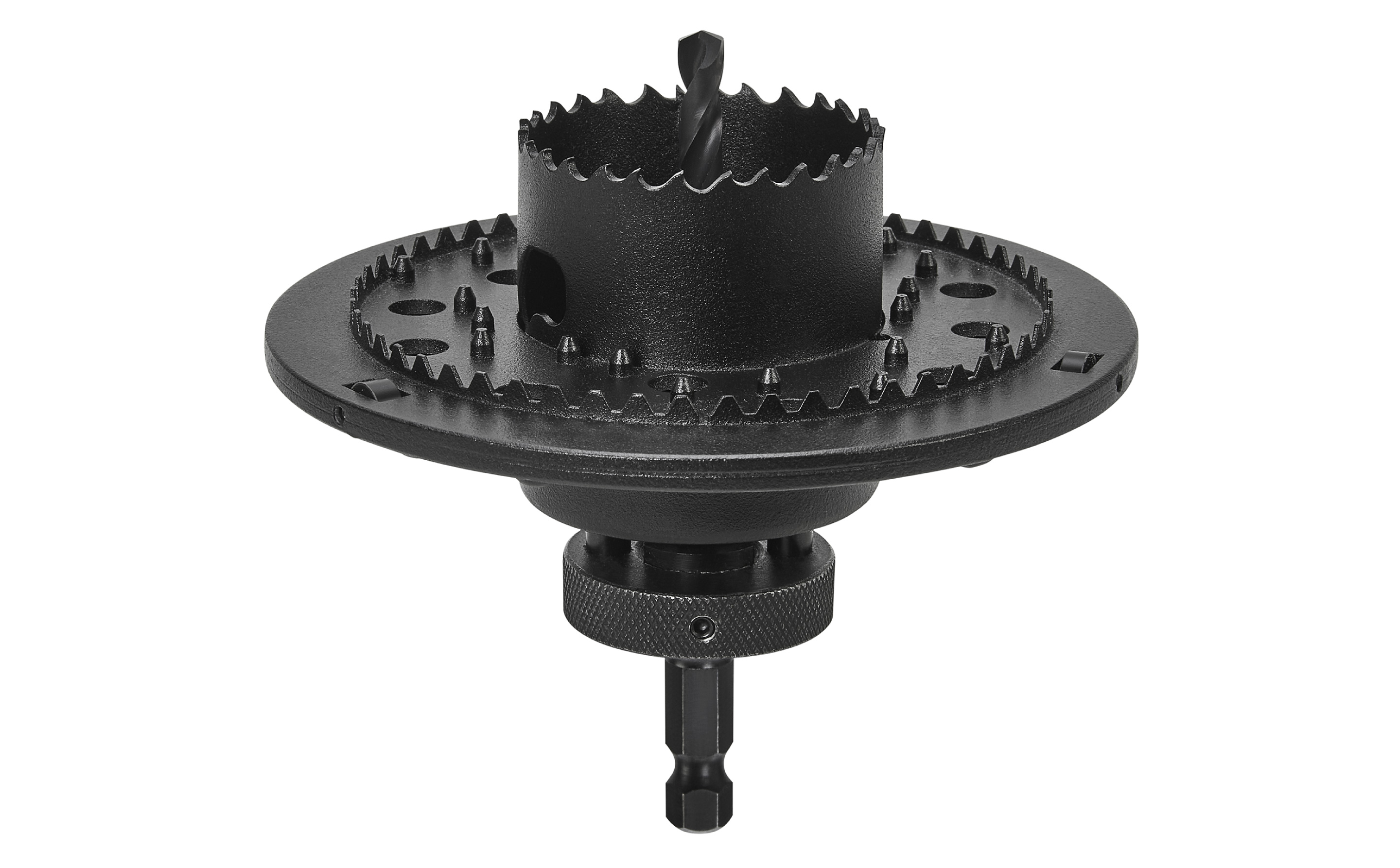

Hole saw

Qty Quantity Add to project

Driver

500mA Driver (not dimmable) @230Vac: 1-10 LED 2W | 1-3 LED 6W | 1-2 LED 9W | 1 LED 18W

Qty Quantity Add to project
500mA Driver (dimmable) @230Vac: 1-15 LED 2W| 1-4 LED 6W|1-2 LED 9W| 1 LED 18W, @110Vac: 1-8 LED 2W| 1-2 LED 6W| 1 LED 9W

Qty Quantity Add to project

Driver Dynamic White

500mA Driver (Saturno Dim To Warm) @230Vac: 1 LED 18W

Qty Quantity Add to project
500mA Driver (Saturno Dim To Warm) @230Vac: 1-2 LED 18W, @110Vac: 1-2 LED 18W

Qty Quantity Add to project
500mA Driver (Saturno Tunable White) @230Vac: 1 LED 18W

Qty Quantity Add to project

Saturno RF

Saturno RF

Configure Saturno RF

• Model

• Power / Supply

• Lens

• Frame

• Finish

• CCT

• Decorative rings

• Optical filter

Your configuration
