Ariel B Micro
Ariel B Micro
Projectors (10W - 14W)
- lm output 900lm - 1100lm
-
CCT
- Power 24-48Vdc - 48Vdc
- Power 10W - 14W
- IP IP40
- Class III
- Weight 150 gr
-
Finishes
-
Description
Ariel is a family of projectors and downlights with minimum dimensions (Ø40 mm) but with high lighting performance (900-1100 lm output), available in various configurations. The series, which offers designer multiple benefits, is unique in terms of flexibility and adaptability to a variety of contexts. Thanks to its new decorative rings, Ariel is the ideal combination of technical performance and emotional reach. Visual comfort is guaranteed by the retracted optics that are easily interchangeable on site, thanks to the easy-to-change clip. A simple gesture and it’s all new: the system allows you to quickly modify any lighting scene. Numerous accessories are provided: optical filters, interchangeable lenses and decorative rings. The latter, available in 8 finishes, guarantee the professional great freedom of expression and customisation.
Ariel is available with six colour temperatures (2200K, 2000K, 2700K, 3000K, 3500K and 4000K) all CRI> 90, ideal for retail and residential use.
A collection that’s in step with current trends and emotions.
Easy-to-change optics
Customized decorative rings
Small size, high performance
Configure Ariel B Micro
-
• Power / Supply
-
• Lens
-
• Finish
-
-
• CCT
-
• Decorative rings
-
-
• Optical filter
-
• Dimming
Your configuration
- Configuration code
- Power / Supply 10W / 24-48Vdc
-
Lens
14° Lens
- Finish -
- CCT -
- Decorative rings -
- Optical filter -
- Dimming -
Driver
Tracks
-
![]()
24-48Vdc surface-mounted Micro track L = 1 m
- Black
- White
-
![]()
24-48Vdc surface-mounted Micro track L = 2 m
- Black
- White
-
![]()
Closure cap for surface-mounted Micro track
- Black
- White
-
![]()
24-48Vdc surface-mounted Micro track with film L = 1,99 m
- Champagne
- Silver
- Titanium
-
![]()
24-48Vdc surface-mounted Micro track with film L = 0,99 m
- Champagne
- Titanium
- Silver
-
![]()
Closure cap for surface-mounted Micro track with film
-
![]()
L = 3 m cover for surface-mounted Micro track
- Black
- White
-
![]()
End feed for surface-mounted 24-48Vdc Micro tracks
- Black
- White
-
![]()
Recessed end feed with 2,5 m black cable for 24-48Vdc Micro tracks
- Black
- White
-
![]()
Joint for 24-48Vdc Micro tracks
- Black
- White
-
![]()
L electrical joint for 24-48Vdc Micro tracks
- Black
- White
-
![]()
L ceiling-wall electrical joint for 24-48Vdc Micro tracks
- Black
- White
-
![]()
Flexible electrical joint for 24-48Vdc Micro tracks
- Black
- White
-
![]()

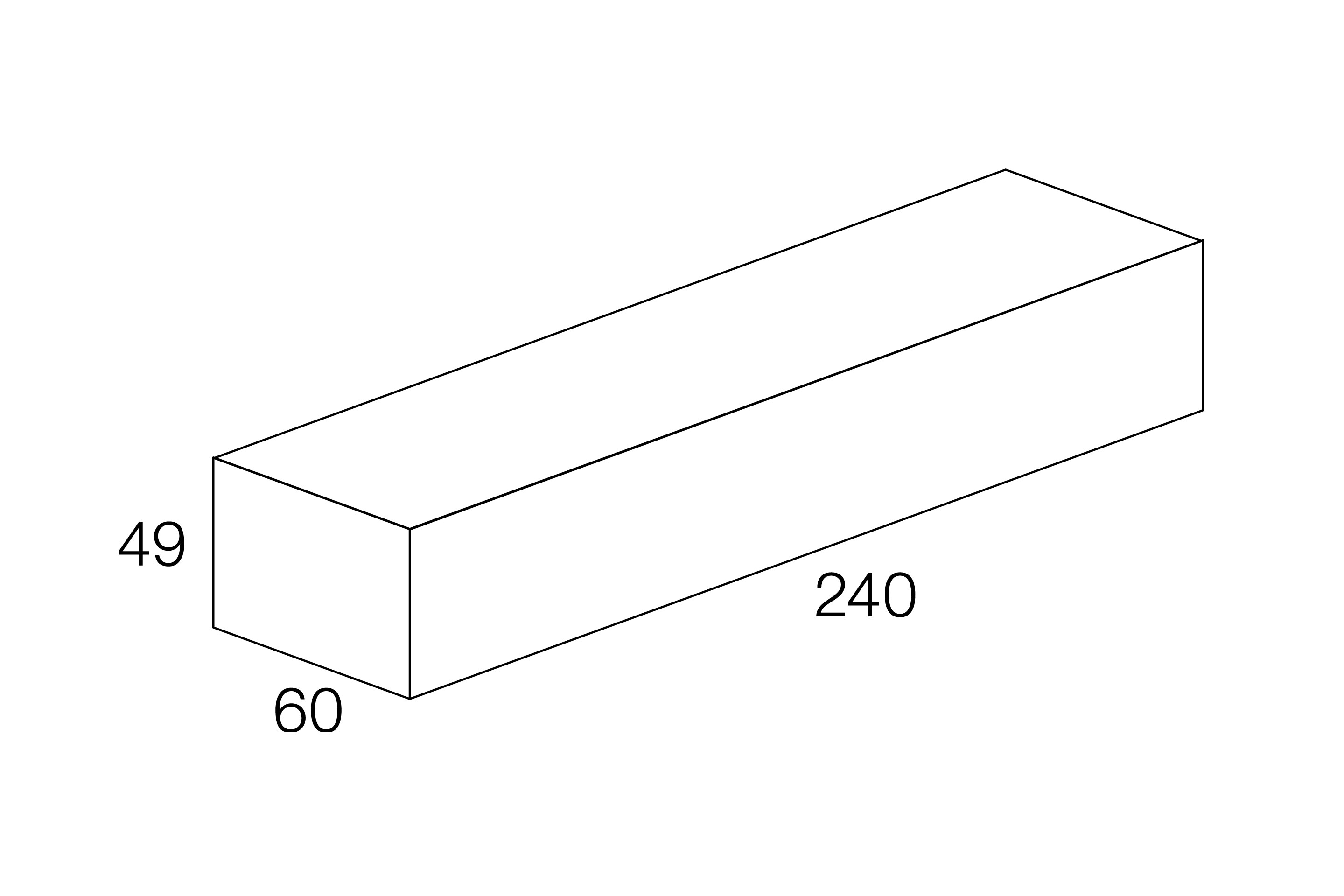

Box with built-in power supply (in 230Vac out 48Vdc 100W max) for Micro tracks
- Black
- White
-
![]()
Box with built-in power supply (in 230Vac out 48Vdc 100W max) for suspended Micro tracks with black cable L = 2 m
- Black
- White
-
![]()
DALI coupler for 24-48Vdc Micro tracks
-
![]()
24-48Vdc trimless Micro track L = 1 m
- Black
- White
-
![]()
24-48Vdc trimless Micro track L = 2 m
- Black
- White
-
![]()
Closure cap for trimless Micro track
- Black
- White
-
![]()
L = 3 m cover for trimless and suspended Micro track
- Black
- White
-
![]()
24-48Vdc suspended Micro track L = 1 m
- Black
- White
-
![]()
24-48Vdc suspended Micro track L = 2 m
- Black
- White
-
![]()
Closure cap for suspended Micro track
- Black
- White
-
![]()
Suspension kit L = 1.5 m with short bracket for Micro track
- Black
- White
-
![]()
Suspension kit L = 1.5 m with long bracket for inline connection of Micro tracks
- Black
- White
-
![]()
Locking tool for PVC to be used in case of Micro track cutting
-
![]()
L cover for surface-mounted Micro track
- Black
- White
-
![]()
L ceiling-wall cover for surface-mounted Micro track
- Black
- White
